Lining identity
Specify the required lining or provide the complete medium profile for compatibility screening.

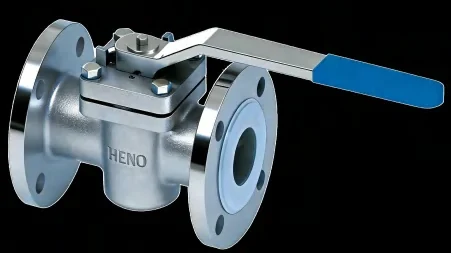

Fluoropolymer-lined plug valve
PFA-Lined Plug Valves
Straight-through lined plug-valve configurations with a DN15–DN300 catalog range. Lining identity, pressure-temperature rating, operator and every wetted component must be confirmed for the selected model.
Quarter-turn mechanism
A straight-through plug-valve route within the lined portfolio
The straight-through quarter-turn construction is available with multiple lining and operating options for project selection.
- PPlug-valve mechanism
A straight-through quarter-turn construction provides an additional lined isolation option.
- LSeveral lining references
PFA, FEP and ETFE labels appear in the catalog and must be tied to the selected model and medium.
- OOperator confirmation
Manual or actuated operation requires interface, torque, duty and environmental review.
Product range
Published selection parameters
Use these values to prepare an inquiry. The final quotation identifies the selected model, materials, dimensions and operating limits.
| Valve family | Fluoropolymer-lined plug valve | Range |
|---|---|---|
| Published size range | DN15–DN300 | Range |
| Pressure reference | 1.6 MPaConfirm the selected model and pressure-temperature derating. | Range |
| Lining options | PFA / FEP / ETFE | Range |
| Flow-path reference | Straight-through plug-valve construction | Range |
| Operation | Manual or actuated | Range |
Operating cycle
State frequency, shutoff duty, available torque and any automation or fail-position requirement.
Pressure-temperature duty
Include normal and maximum differential pressure plus every temperature state.
Project interface
Confirm nominal size, flange reference, installation clearance and document requirements.
Related products: All PFA-lined valves · PFA-lined ball valves
Selection support
Tie the plug-valve model to one defined lining and service profile.
Provide medium composition, pressure, temperature, size, flange, operating duty, actuation and inspection requirements for a documented review.
