Diaphragm specification
Confirm the fluoropolymer face, backing elastomer and any process-required documentation.

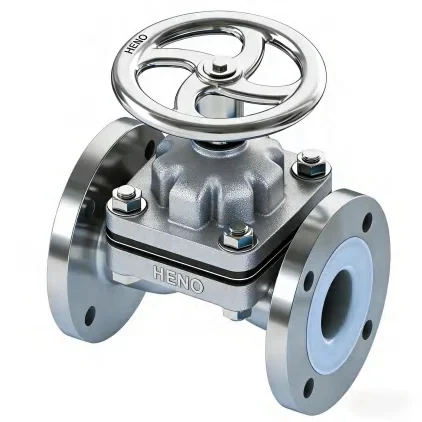

Fluoropolymer-lined diaphragm valve
PFA-Lined Diaphragm Valves
DN15–DN300 lined diaphragm valves with manual and pneumatic configurations. Diaphragm materials, backing construction and the full service profile are reviewed together.
Isolation mechanism
A flexible diaphragm separates actuation from the lined flow path
This valve family may be screened when a diaphragm mechanism and fluoropolymer-lined wetted construction fit the process concept. The exact diaphragm assembly remains a service- and model-specific decision.
- DDiaphragm isolation mechanism
The diaphragm separates the operating mechanism from the catalog-described lined flow path.
- CConstruction-dependent materials
Fluoropolymer and elastomer backing references vary; the complete diaphragm specification is required.
- PManual or pneumatic route
Pneumatic selection requires the control function, air supply, fail action and cycling information.
Product range
Published selection parameters
Use these values to prepare an inquiry. The final quotation identifies the selected model, materials, dimensions and operating limits.
| Valve family | Fluoropolymer-lined diaphragm valve | Range |
|---|---|---|
| Published size range | DN15–DN300 | Range |
| Pressure reference | 1.6 MPaConfirm the rating for the selected diaphragm, size and temperature. | Range |
| Diaphragm references | FEP / PFA / PTFE with elastomer backing options | Range |
| Operation | Manual or pneumatic | Range |
| Temperature selection | Confirm for the selected diaphragm and serviceTemperature capability depends on the complete diaphragm assembly and process conditions. | Range |
Temperature conflict
Supply the complete operating and cleaning profile so HENO can resolve the source inconsistency.
Media and solids
State composition, concentration, solids content and crystallization or deposit risk.
Actuation duty
Define manual or pneumatic operation, fail position, cycle frequency and control accessories.
Related products: All PFA-lined valves · PFA-lined ball valves
Selection support
Confirm the diaphragm construction and temperature profile together.
Share the complete medium, pressure, temperature, cleaning, size and actuation requirements before a diaphragm valve is shortlisted.
