Chemical profile
State the full chemical name, concentration, water content, contaminants and suspended solids.

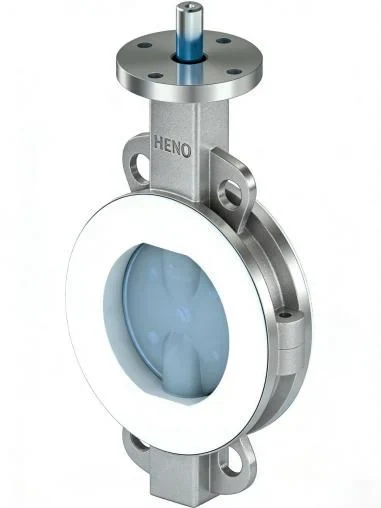

Fluoropolymer-lined butterfly valve
PFA-Lined Butterfly Valves
Catalog-listed DN50–DN900 butterfly valves with a fluoropolymer-lined flow path. Final suitability depends on the exact lining, every wetted material, media chemistry and the combined pressure-temperature duty.
Construction route
A butterfly-valve format with a separated lining system
A two-piece body, lined flow path and multiple operator routes provide a compact butterfly-valve option for compatible chemical-service projects.
- ¼Quarter-turn valve mechanism
A butterfly-valve format offers a compact flow-control or isolation route where the lining and service conditions are compatible.
- LLined media-contact path
The source catalog separates the structural body from the fluoropolymer-lined wetted surfaces.
- AManual or automated operation
Operator selection still requires valve torque, cycle frequency, control signal and environmental data.
Product range
Published selection parameters
Use these values to prepare an inquiry. The final quotation identifies the selected model, materials, dimensions and operating limits.
| Valve family | Fluoropolymer-lined butterfly valve | Range |
|---|---|---|
| Published size table | DN50–DN900 (2–36 in) | Range |
| Pressure reference | 1.0 MPaConfirm the allowable rating for the selected lining and service temperature. | Range |
| Construction reference | Two-piece body with a lined flow path | Range |
| Wetted-material references | PFA-coated disc and PFA / PTFE seat referencesConfirm every wetted component on the order bill of materials. | Range |
| Operation | Handle, gear, pneumatic or electric | Range |
Temperature profile
Include normal, cleaning and upset temperature rather than one nominal value.
Valve duty
Define isolation or throttling, operating frequency, differential pressure and required shutoff direction.
Flange interface
Confirm nominal size, flange standard, facing, face-to-face and available installation clearance.
Related products: All PFA-lined valves · Aluminum butterfly valves · High-performance butterfly valves
Selection support
Define the chemical duty before selecting the lined butterfly valve.
Send the medium composition, pressure-temperature profile, line size, flange standard, operating duty and actuator requirement for catalog-to-project review.
