Match the seat to the service
Temperature capability depends on the selected EPDM, NBR, HEPDM or FKM seat and the process medium. State both normal and maximum temperature.
Model HF-520

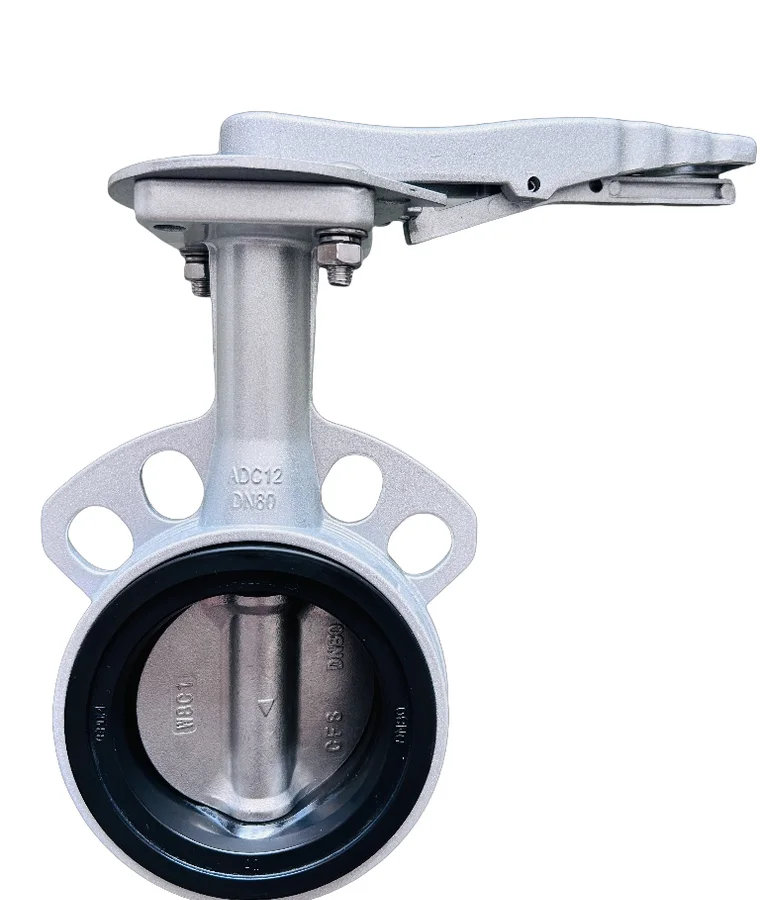

HF-520 Aluminum Butterfly Valve
A centerline wafer butterfly valve with an ADC12 die-cast aluminum alloy body and configurable disc, seat and actuation options for compatible services.
At a glance
One platform, multiple final configurations
HF-520 is a configurable product family. Size, pressure, disc, seat, operator and connection compatibility must be considered as a complete selection.
- 32Starting at DN32
The product range begins at DN32.
- 300Up to DN300
Handle operation is available through DN150; other operator routes extend to DN300.
- 16Up to 1.6 MPa
Working-pressure options include 0.6, 1.0 and 1.6 MPa.
Technical data
HF-520 product specifications
Review size, pressure, materials, actuation and connection options for the required configuration.
| Valve type | Centerline wafer butterfly valve |
|---|---|
| Body material | ADC12 die-cast aluminum alloy |
| Nominal size range | DN32–DN300Actuation-specific limits apply. |
| Working pressure options | 0.6 / 1.0 / 1.6 MPa |
| Disc options | 304 or 316 stainless steel; nickel-plated ductile iron |
| Shaft reference | 410 stainless steel / EN 1.4057 |
| Seat options | EPDM, NBR, HEPDM or FKMTemperature capability is seat- and service-dependent. Confirm for the intended medium and conditions. |
| Actuation | Bare shaft, handle, worm gear, pneumatic or electric |
Compatibility references
Design and connection standards
Use these references to identify the required flange and mating arrangement in the RFQ.
| Design references | ASME B16.34, ISO 5208, API 609 | Standard |
|---|---|---|
| Flange compatibility references | ASME B16.5 Class 125/150; EN 1092-1 PN6/10/16; JIS 5K/10K/16K | Standard |
| Top flange reference | ISO 5211 | Standard |
| Sealing references | ISO 5208, API 609 | Standard |
| Face-to-face references | ISO 5752, API 609 | Standard |
State operating and test requirements
Nominal working-pressure options do not replace evaluation of differential pressure, duty cycle, system transients or the requested test standard.
Selection support
Send the application data behind the HF-520 part request.
Share the medium, pressure, size, temperature, connection standard and actuation requirement. We will use them to frame the next technical review.
